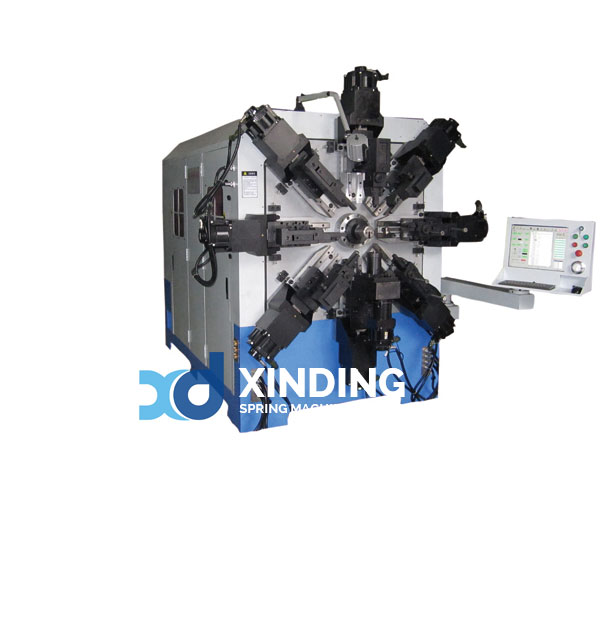

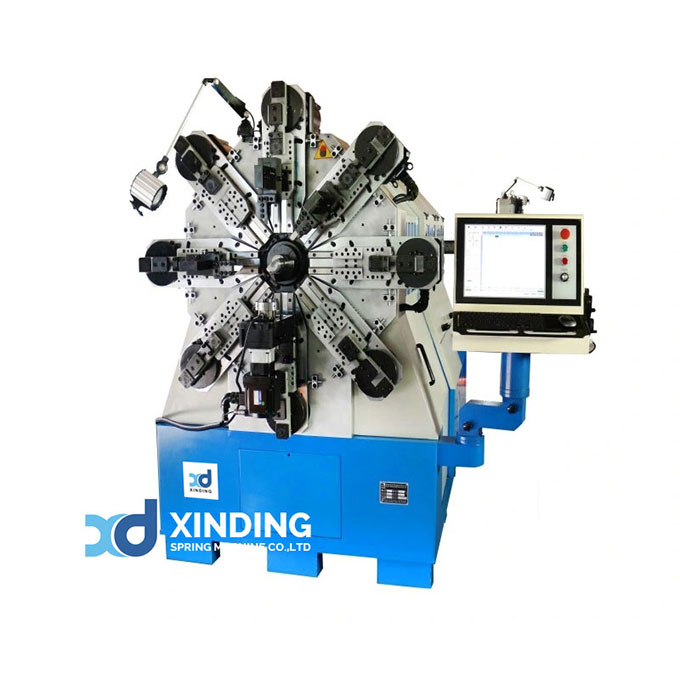

XD-1260WZ Camless Spring Machine
Description：Xinding spring machinery, Springs machine, XD-1260WZ Spring Machine, 2.5-6.0mm springs making.
Introduction:
Special camless design equipped with free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.
Intuitive graphics user interface.
Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
Commonly use in the industries of: automobile, wire forms, entertainment and fitness.
Technical Parameter:
| Model: |
XD-1260WZ |
|
Wire diameter: |
φ2.5～6.0 mm |
|
Axes: |
12 axes |
|
Maximum Outside Diameter: |
110mm |
|
Maximum Feeding Length: |
unlimited |
|
Maximum Manufacture Speed: |
100pcs/min |
|
Feed Speed: |
54m/min |
|
Memory Number: |
1000pcs |
|
Display language: |
Chinese&English |
|
Total Motor Consumption: |
50kw |
|
Power AC: |
3-Phase 380v |
|
Dimension (L*D*H): |
3000X2100X2200mm |
|
Wooden Case Dimension: |
3100x2500x2500mm |
|
Machine Weight: |
5000Kg |
|
Gross Weight: |
6000Kg |
