XD-660 CNC Spring Coiling Machine

  • XD-660 CNC Spring Coiling Machine

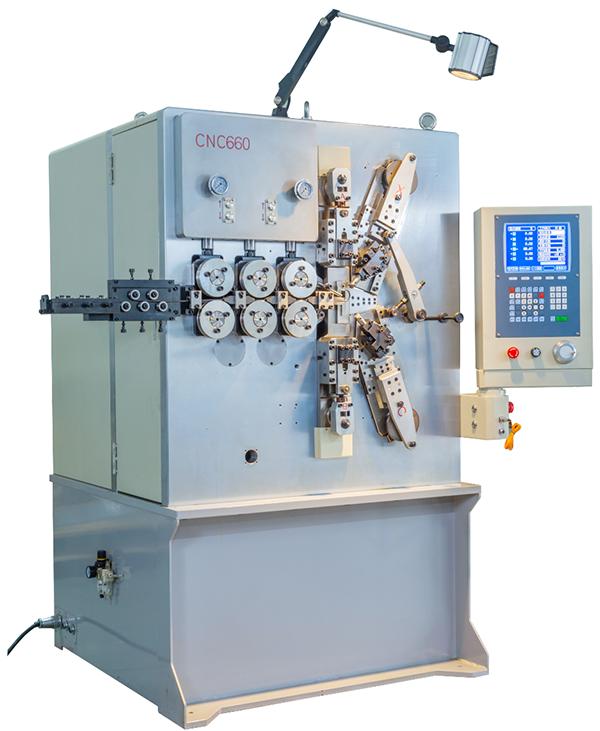

XD-660 CNC Spring Coiling Machine

Description
Convenient mechanical operation system, high speed and accuracy resulted from seperate six servo motors.
XD-660 compression spring machine is a 6-axis spring machine consisting of wire feeding axis ,upper cutter axis, bottom cutter axis, pitch axis. besides, we add a spring OD controlling axis, all these axis assures to make most precise springs with most efficiency.

inquiry

CNC Spring Coiling Machine


Machine features:


Convenient mechanization,high speed and accuracy resulted from servo motion system.

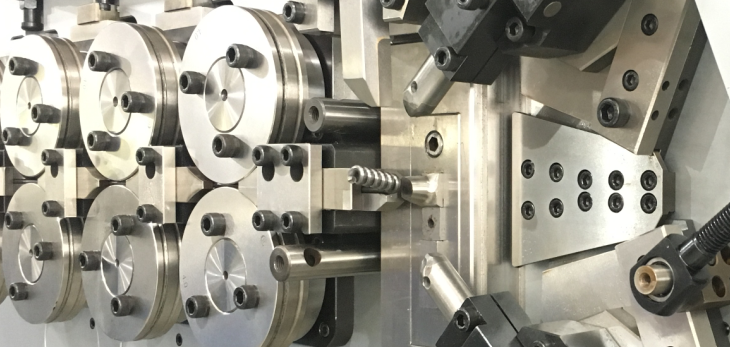

1. XD-660 compression spring machine is a 6-axis spring machine consisting of wire feeding axis ,upper cutter axis, bottom cutter axis, pitch axis. What’s more, we add a spring OD controlling axis, all these axis assures to make most precise springs with most efficiency.
2. The spring machine cutter can be adjusted inside and outside on computer easily and flexibly.thus saved manual work.
3. Servo motion system and servo drive controlled,  15" control panel, easy to operate.
4. All necessary work relating to spring production can be accomplished by finger on computer panel.

5. Computer can automatically detect the  temperature of  the motor and slow down the running speed to protect the motor from overheating.
6. Computer can automatically decelerate according to the timing when the probe should be used.
7. Production speed can be increased or decreased at any time of running the machine.
8. Optional accessories: length gauge.





Product Range:

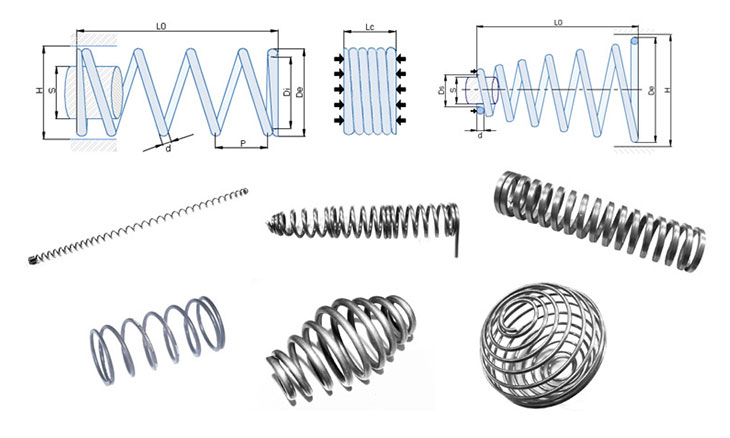

This spring coiling machine makes various kinds of compression springs, wire coil,  taper springs, double-taper springs, safe springs, clip spring as well as various simple torsion springs, its products can be applied to military, construction, motorcycles ect.


Technical Parameter:


1.Model:

XD-660

2.Wire diameter:

Φ2.006.00 mm

3.Axes:

6 axes

4.Maximum Outside Diameter:

90 mm

5.Maximum Feeding Length:

unlimited

6.Maximum Manufacture Speed:

100pcs/min

7.Feed Speed:

80m/min

8.Memory Number:

1000PCS

9.Wire Feed Servo Motor:

15 KW

10.Upper Cutter Servo Motor:

3.8 KW

11.Bottom Cutter Servo Motor:

3.8 KW

12.Pitch Servo Motor:

2.7 KW

13.OD Servo Motor:

2.7 KW*2

14.Power AC:

3-Phase 380V

15.Dimensions (L*D*H):

1900X1500X2000mm

16.Wooden Case Dimension:

2000x1700x2150mm

17.Machine Weight:

4000Kg

18.Gross Weight:

4500Kg
