XD-250 Spring Machine

  • XD-250 Spring Machine

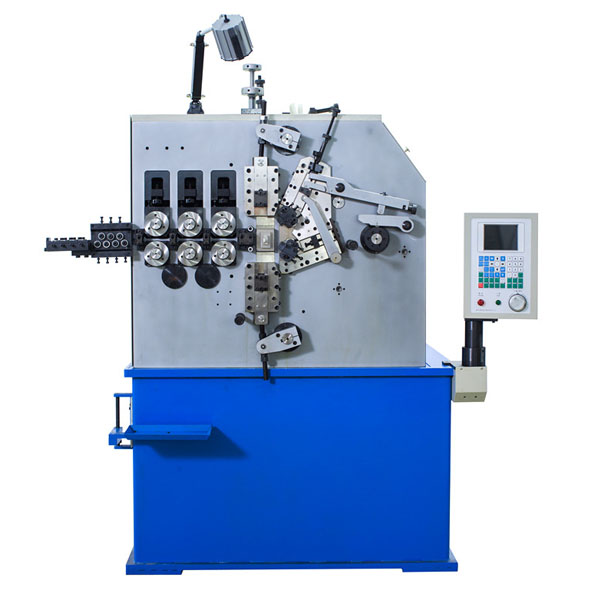

XD-250 Spring Machine

Description
XD-250 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s two axes can act independently or synchronously according to the program.

inquiry

Details:

1. XD-250 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s two axes can act independently or synchronously. XD-250 also have an option of a pitch axis installment to upgrade as a 3 axis spring coiler.
2. 5.7" control panel ,easy to operate.
3. Cam can be moved clockwisely or anti –clockwisely, wire feed length and speed is up to user's adjustment.
4. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.
5. Computer can automatically decelerate according to the timing when the probe should be used.
6. Prodution speed can be increased or decreased at any time of running the machine.
7. Convenient mechanism,high speed and precision.

8. Optional accessories: Torsion device, spring length gauge.


Product Range:
This compression spring machine can make various compression springs, wire coil, oil seal springs, taper springs, double-taper springs, safe springs, flat wire spring, motorcycle spring, bicycle springs,clip spring as well as some torsion springs.

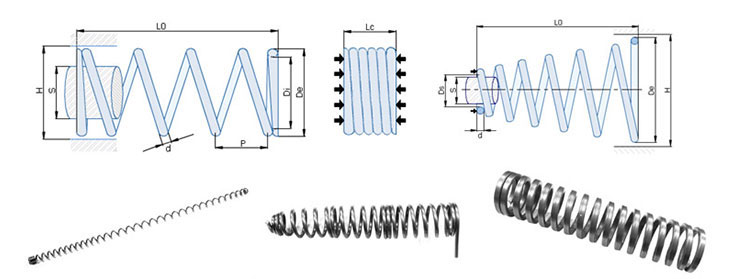

Sample:



Technical Parameter:

Model:

XD-250

Wire diameter:

φ2.0~5.0 mm

Axes:

2-3 axes

Maximum Outside Diameter:

80mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

100pcs/min

Feed Speed:

54m/min

Memory Number:

1000pcs

Wire Feed Servo Motor:

7.5kw

Cam Servo Motor:

7.5kw

Power AC:

3-Phase 380v

Dimension (L*D*H):

1800X1300X2000mm

Wooden Case Dimension:

2240x1820x2240mm

Machine Weight:

2300Kg

Gross Weight:

2700Kg
