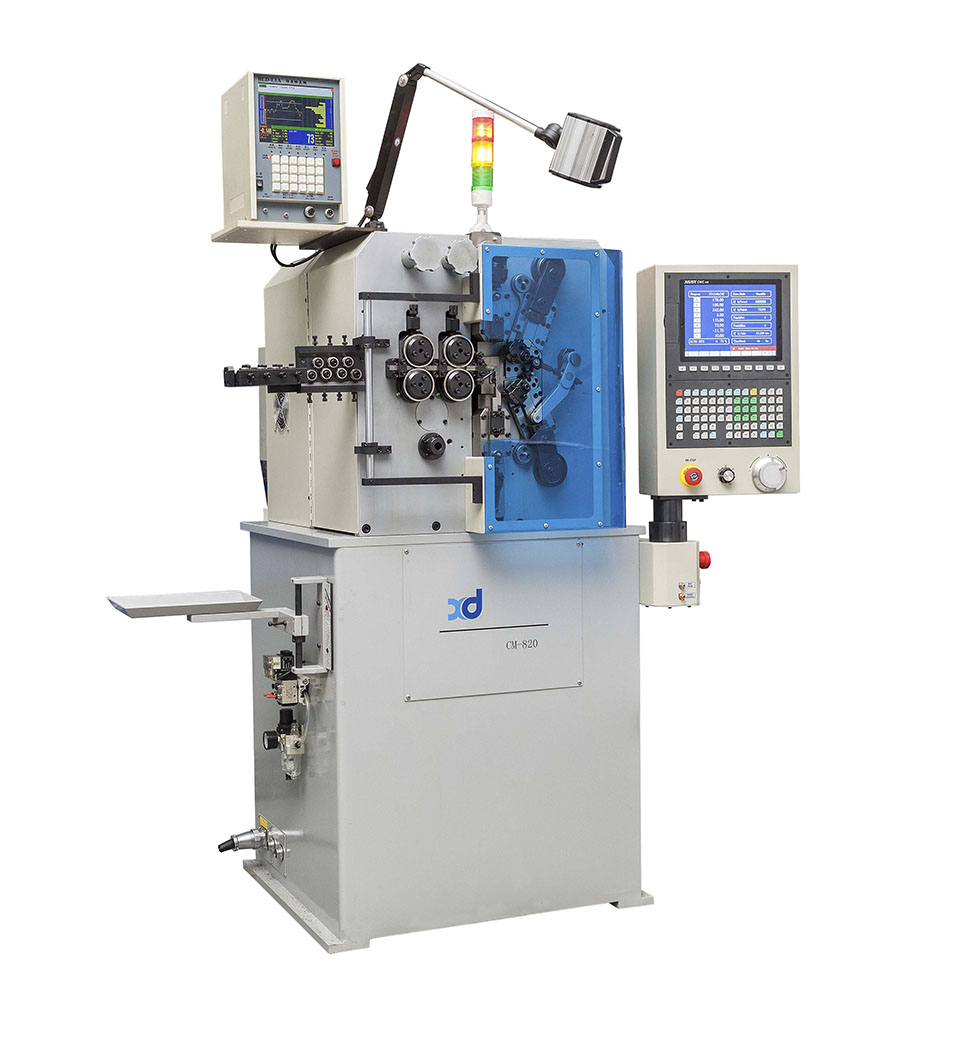

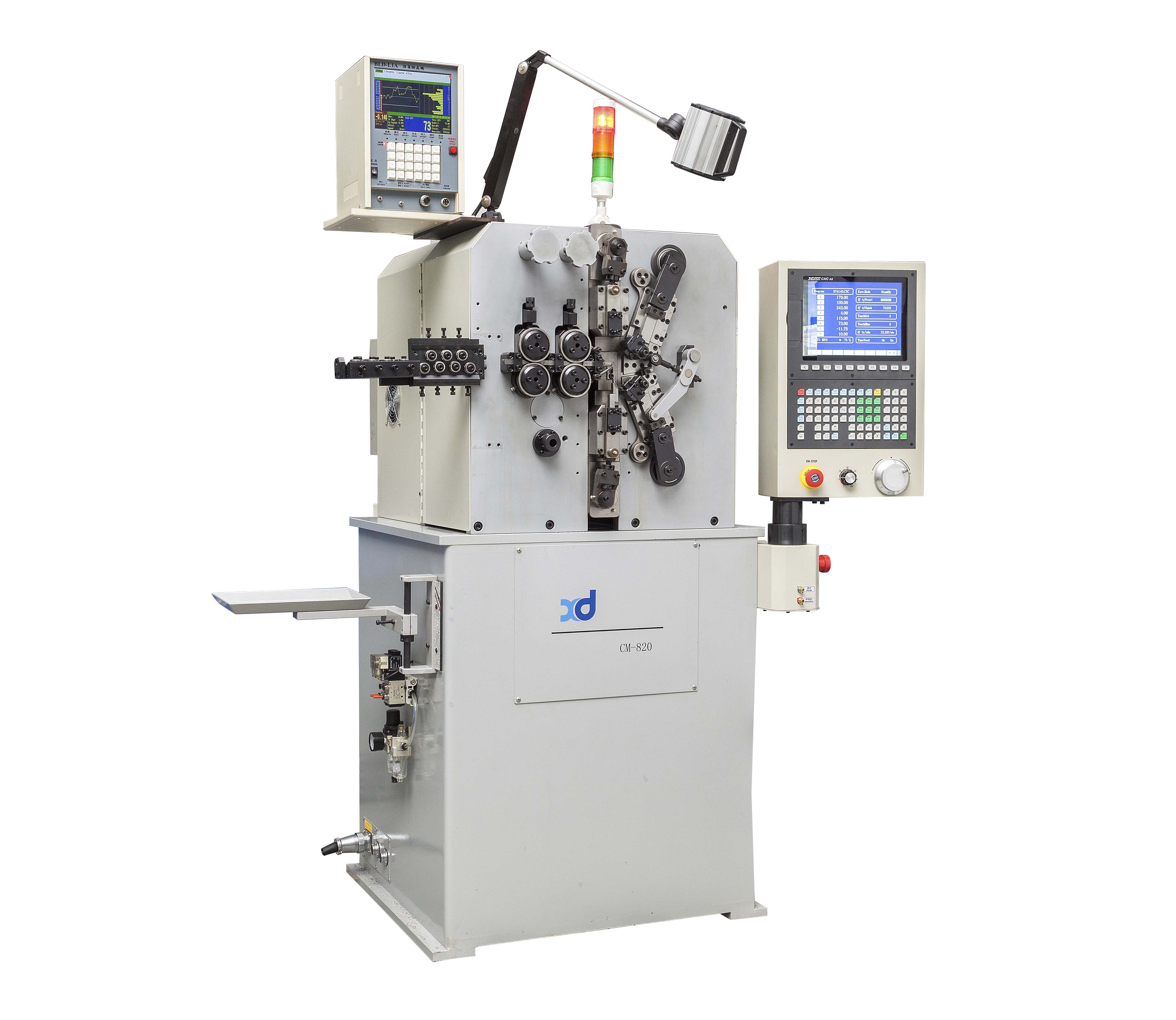

XD-820 Spring Coiling Machine
Description：XD-820 eight axis spring coiler, which applied in wire diameter 0.5-2.0mm, for all type of precise compression spring and some torsional springs, the machine has a wide application range, such as coil springs( equal pitch or unequal one), neutral and concave springs, barrel shape springs, tower shape spring, battery spring, watch spring, toy spring, support spring, tube spring, dredge spring and single torsion springs ect.
The machine totally equipped with eight servo motors, they are, one wire feed motor, two cutting motors, two OD control motors, two arbor control motors, one pitch control motor.
Machine features:
1. Integrated design of cutters which are directly controlled by CNC.
2. Fieldbus controller, with fast reaction speed and good synchronization..
3. Quick tooling changeover speed of left and right hand spring.
4. Arbor move back and forth, up and down.
5. Max speed reaches 700pcs/min.
6.Compared with traditional two axis coiler, it has much faster operation and set-up speed.
7. Safety shield and spring length gauge available with the machine.
Technical Parameter:
| 1.Model: | XD-820 |
| 2.Wire Diameter: | 0.5-2.0mm |
| 3.O.D: | ￠45mm |
| 4.Production Rate: | 300pcs/min |
| 5.Feed Length: | unlimited |
| 6.Wire Feed: | 2.7kw |
| 7.Cutter: | 1kw*2 |
| 8.OD Axis: | 1kw*2 |
| 9.Pitch: | 1kw |
| 10.Arbor Back-And-Forth: | 0.4kw |
|
11.Arbor Up-And-Down: |
0.4kw |
| 12. Computer Display: | Chinese/English |
| 13.Machine Dimension: | 110*900*165 cm |
| 14.Machine Weight: | 1100kgs |
| 15.Power: | 380v 3p 50/60hz |
