XD-CNC20D Spring Machine

Description
XD-CNC20D Spring Machine, 0.3-2.3mm springs making. China spring machinery, Springs machine,

inquiry

Details:

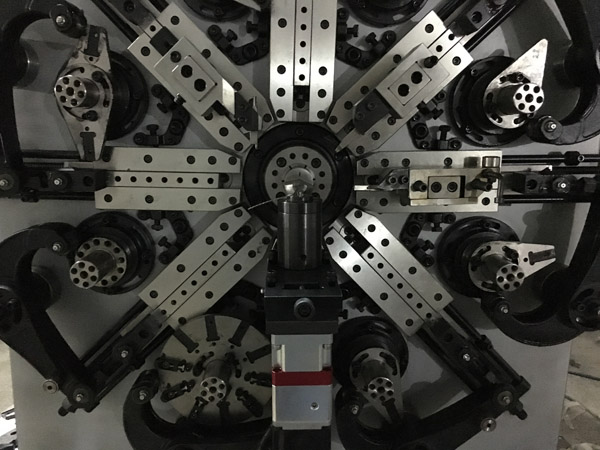

1. XD-CNC20D spring machine consists of cam axis, wire feeding axis, rotation core and spinner axis. mechanical part has eight sets of sliding blocks.

2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. XD-CNC20D  cnc spring machine is equipped with XinDing 3-4 axis spring machine controller. which can save 1000 files, axis location, feeding data.production speed and production output are displayed on the screen.

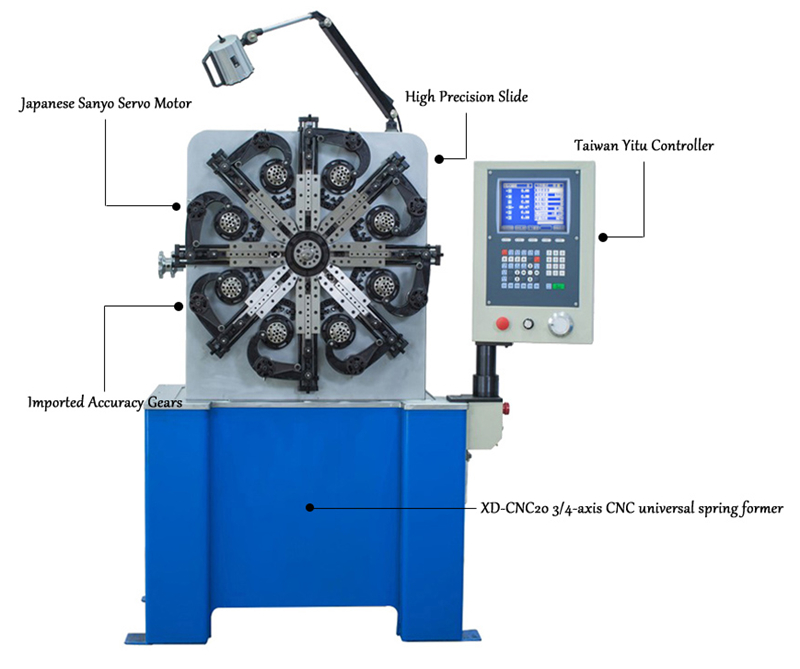

spring machine cnc20d


Product Range:
This CNC spring machine manufacture various types of ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.


Sample:



Technical Parameter:

Model:

XD-CNC20D

Wire diameter:

φ0.3~2.3 mm

Axes:

3-4 axes

Maximum Outside Diameter:

40mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

100pcs/min

Feed Speed:

200m/min

Memory Number:

1000pcs

Wire Feed Servo Motor:

2.7kw

Cam Servo Motor:

2.7kw

Quin Servo Motor:

0.75kw

Power AC:

3-phase 380v

Dimensions (L*D*H):

1400X550X1600mm

Wooden Case Dimension:

1600x600x1700mm

Machine Weight:

900kg

Gross Weight:

950kg
