XD-CNC20 Spring Former

  • XD-CNC20 Spring Former

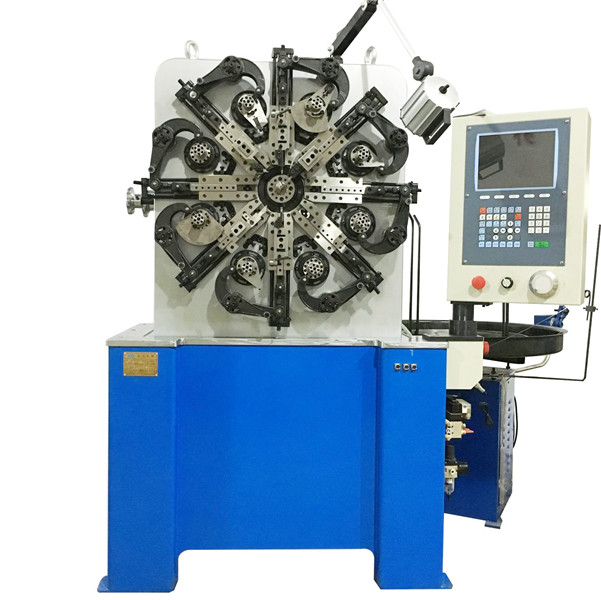

XD-CNC20 Spring Former

Description
XD-CNC20 Spring Former is three to four axis spring making machine, it is able to make all kinds of springs of wire diameter ranging from 0.30mm to 2.30mm.

inquiry

Details

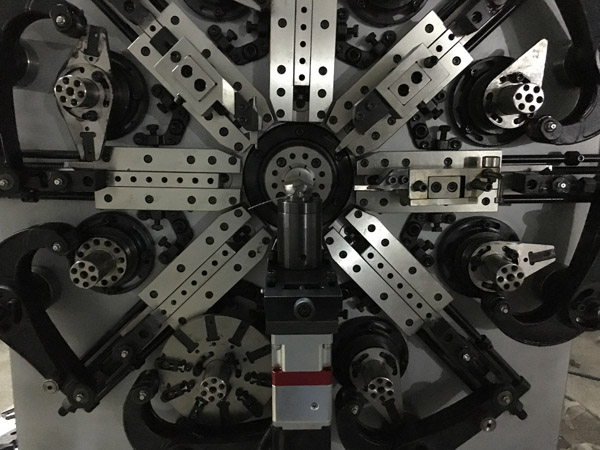

1. XD-CNC20 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. mechanical part has eight sets of sliding blocks.

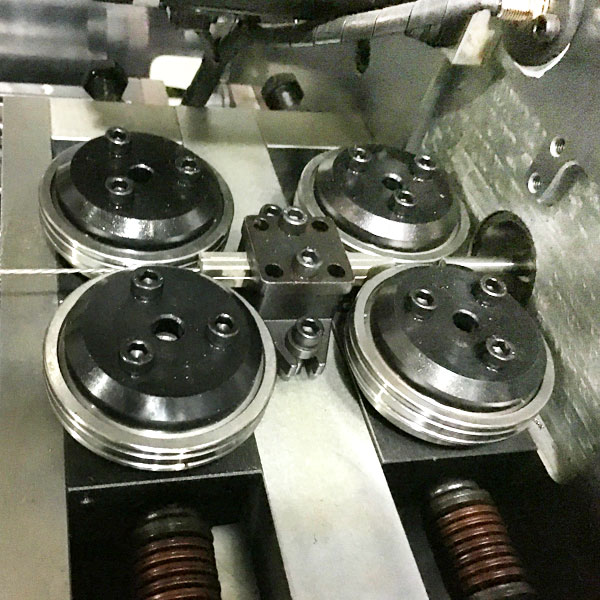

2. Computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. XD-CNC20 cnc spring machine is equipped with Xinding spring machine controller. The controller system can save 1000 file numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.








Product Range:
This CNC spring machine manufacture various types of ultra-precision irregular springs, compression springs, pulling springs, dual-torsion spring, flat line(spiral power spring)and line molding spring etc.


Sample:



Technical Parameter

Model:

XD-CNC20

Wire diameter:

φ0.3~2.3 mm

Axes:

3 axes

Maximum Outside Diameter:

40mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

100pcs/min

Feed Speed:

200m/min

Memory Number:

1000PCS

Wire Feed Servo Motor:

2.7 KW

Cam Servo Motor:

2.7 KW

Quin Servo Motor:

0.75 KW

Power AC:

220V 3P 50/60Hz

Dimensions (L*D*H):

1400X550X1600MM

Wooden Case Dimensions:

1600x600x1700mm

Machine Weight:

900Kg

Gross Weight:

950Kg
