Details

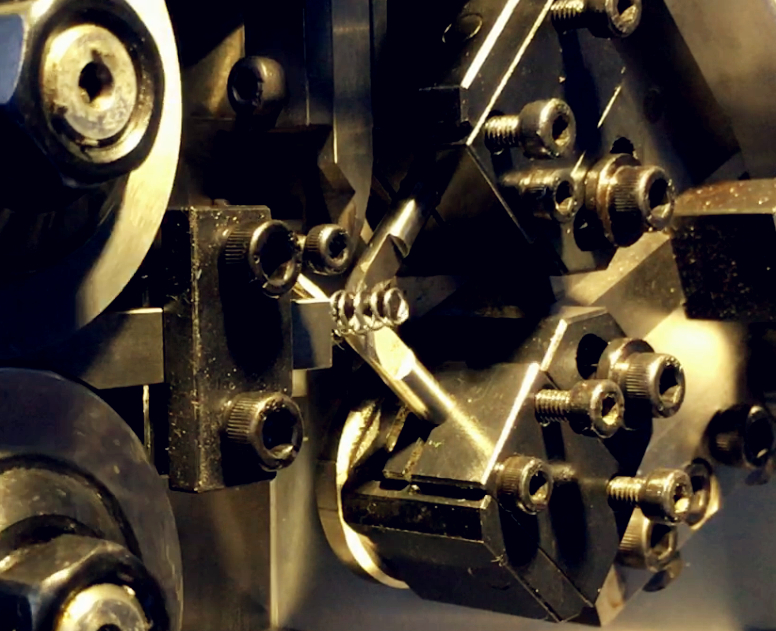

1. XD-208 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s two axes can act independently and synchronously.
2. The compression spring machine pitch, outside diameter and cutter are driven by the cam motor. the wire feeding is controlled by an independent motor.
3. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
4. Servo motion system and servo drive controlled,  5.7" control panel, easy to operate.
5. Cam can be moved clockwisely or anti-clockwisely, wire feed length can be change while running the machine.

6. Computer can automatically detect temperature of  the motor and slow down running speed to protect the motor from overheating.
7. Computer can automatically decelerate according to the timing when the probe should be used.
8. Production speed can be increased or decreased at any time of running the machine.
9. Optional accessories: Torsion device, oil seal device, pneumatic sensor device, spring length gauge.

Product Range:
This compression spring machine can make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding.

Samples:

Technical Parameter:
