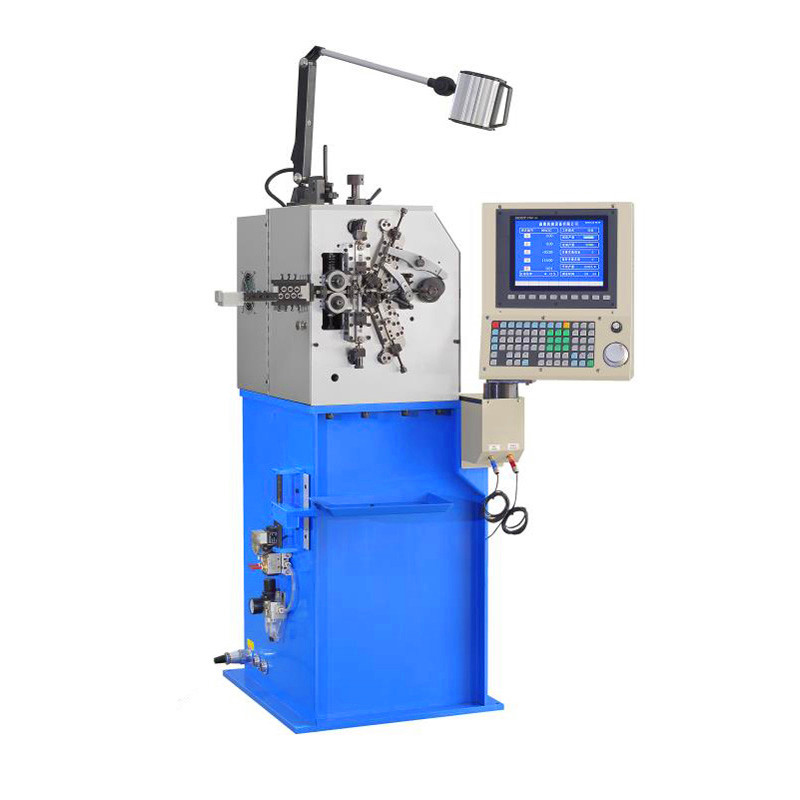

XD-608 Spring Coiler

Description：
XD-608 six axis spring coiler adopts servo motor control on its spring coiling part.

Machine features:

1. Integrated design of cutter and mandrel.

2. Fieldbus controller, with fast reaction speed and good synchronism.

3. Faster conversion speed of left and right hand spring.

4. Computer can automatically detect the temperature of motor and slow down its running speed to protect motor from overheating.

5. Computer can automatically decelerate according to the timing when probe should be used.

6. Prodution rate can be increased or decreased at any time of operation.

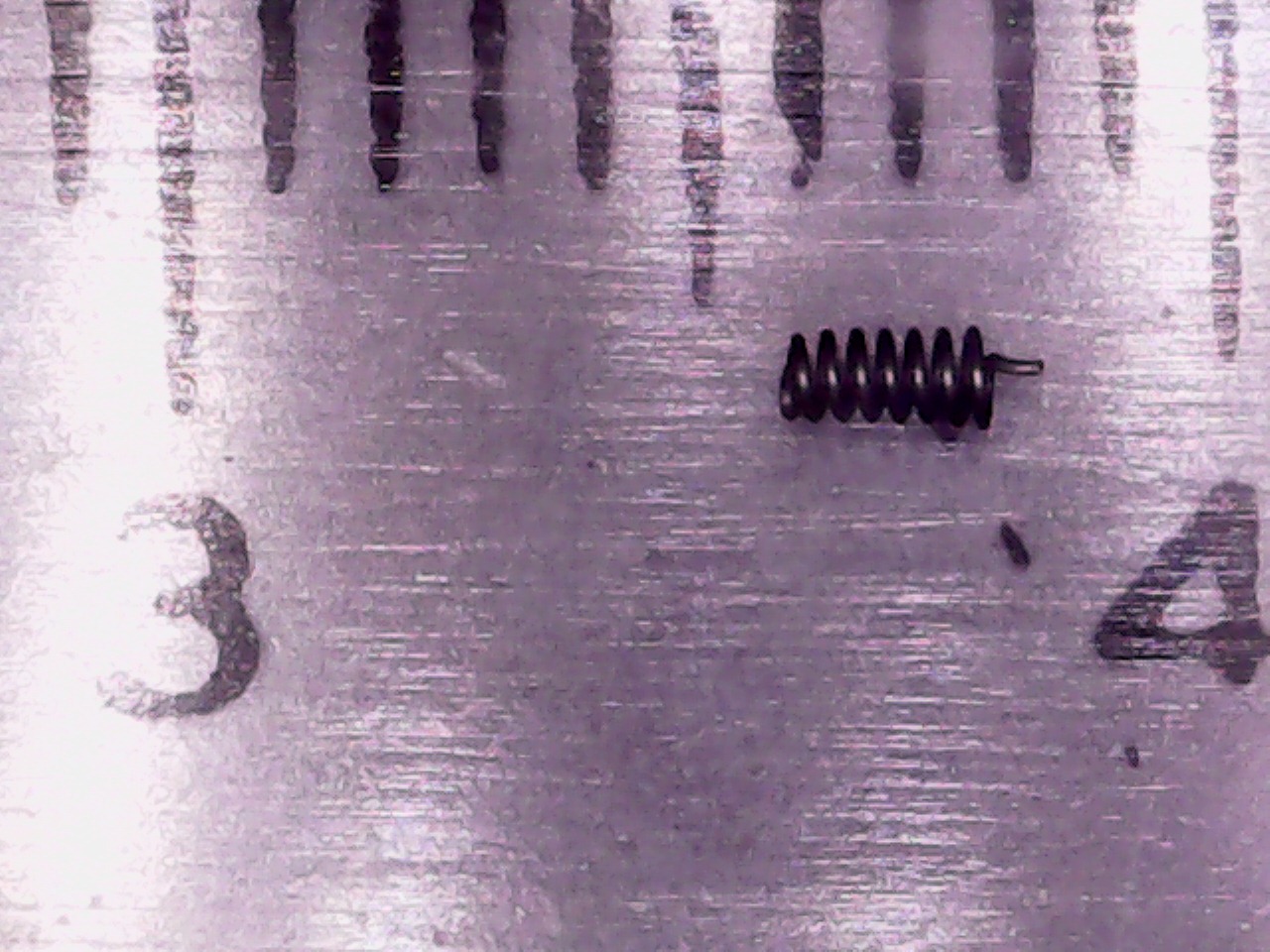

7. Max speed reaches 1000pcs/min, absolutely a nice equipment for small coil springs.

Technical Parameter:

1.Model:	XD-608
2.Wire Diameter:	0.1-0.8mm
3.O.D:	￠25mm
4.Production Rate:	1000pcs/min
5.Feed Length:	unlimited
6.Wire Feed:	0.75kw
7.Cutter:	0.4kw*2
8.OD Axis:	0.4kw
9.Pitch:	0.4kw
10.Arbor back-and-forth:	0.4kw
11.Monitor Display:	Chinese/English
12.Max. Value:	99999.99mm
13.Min.Value:	0.02mm
14.Memory:	150 Program Max 999 Lines for each program
15.Machine Dimension:	9070135cm
16.Machine Weight:	500kgs
17.Power:	220v 3p 50/60h
